    Dust-proof 103 Keys Black Metal Kiosk Keyboard With Touchpad And Number Keypad

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKB-FN103A-TP-B
    Certification : CE,FCC
    Price : US$
    Delivery Time : 20days
    Payment Terms : T/T,Paypal
    Supply Ability : 2000pcs/month
    • Product Details
    • Company Profile

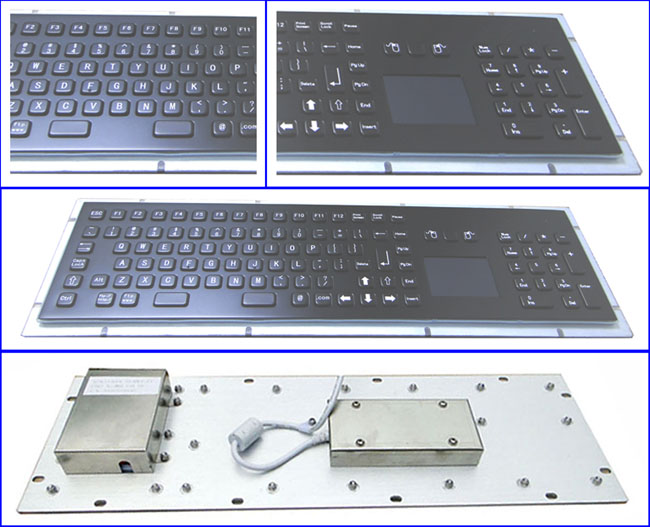

    Dust-proof 103 Keys Black Metal Kiosk Keyboard With Touchpad And Number Keypad

    Dust-proof 103 Keys Black Metal Kiosk Keyboard With Touchpad And Number Keypad
    MKB-FN103A-TP-B
    Key Features

    1) 103 keys(of them 12 function keys), panel mount
    2) Integrated touchpad and numeric keypad
    3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
    4) Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
    5) Built from stainless steel, high vandal-proof.
    6) Dust-proof and liquid-proof, meet IP65 requirement
    7) PS/2 or USB interface for option
    8) Customizable layout upon customers request

    Specifications

    Material

    Front panel & Keys: Brushed stainless steel

    Back panel: Aluminum alloy

    Touchpad: Synaptics high-sensitivity touchpad

    Electrical Data

    Power supply voltage: DC 5 V 5%

    Current rating: 20 mA

    Touchpad resolution:1000dpi

    Interface: USB or PS2

    EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1

    FCC: Part 15, class B

    Safety: EN 60950, CE compliant

    Environmental Characteristics

    Operating temperature: -20 C to + 60 C

    Storage temperature: - 40 C to + 80 C

    Saline mist: 96 hours, IEC 60512-6

    Damp heat test at + 40 C: 21 days, IEC 60512-6

    Dry heat test at + 85 C: 10 days, IEC 60512-6

    Mechanical Data

    Actuation force for key:120±15g

    Key travel: 2.0mm

    Lifetime (cycles): Min 5, 000, 000 actuations

    Sealing protection: IP65/NEMA4X from the front

    Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

    Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

    Operation system

    PS2: Win NT4, 98SE, 98ME, 2000, XP

    USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

    Weight and Dimension

    Weight:2.20kg

    Dimension:
    Front panel: 478.0 x 135.0 mm
    Back panel: 502.0 x 159.0 mm, thickness:32.10mm( to the tallest component)
