    Super-tiny Stainless Steel Industrial Keyboard With Touchpad And Function Keys For Machines

    Ask Lasest Price
    Brand Name : KINGLEADER or Customer's logo
    Model Number : MKB-F66B-TP-M
    Certification : CE,FCC,ROHS
    Price : US$115-175
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Super-tiny Stainless Steel Industrial Keyboard With Touchpad And Function Keys For Machines

    This is a super-tiny stainless steel panelmount keyboard with 66 small-sized keys including 10 function keys and integrated touchpad,it measures 160 x 135mm(W x H) and was particularly designed to be integrated into machines,terminals or workstations.


    Due to its unique design and build,it is rugged and IP65 compliant,therefore widely used in harsh environment such as public place,industrial workplaces or military field.


    Items


    Specifications


    Key Features

    - 66 full travel keys

    - Compact size(160 x 135mm(W x H))

    - Chemically-etched characters/lettering

    - Panel mount from the front side

    - Robust build against vandalism

    - Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

    - Dust-proof and liquid-proof, IP65 compliance after properly mounted

    - Layout customizable according to customer’s request

    - Application: terminals deployed in public place,industrial workplaces

    or military field.


    Material

    - Face plate: 304 stainless steel
    - Keys: 304 stainless steel

    - Back plate: Aluminum

    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: 20 mA
    - Interface: USB or PS2
    - EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1
    - FCC: Part 15, class B
    - Safety: EN 60950, CE compliant
    Environmental Characteristics- Operating temperature: -40º C to + 70º C
    - Storage temperature: - 50º C to + 80º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data- Actuation force for key:80±15g
    - Key travel: 2.0mm
    - Lifetime (cycles): Min 5, 000, 000 actuations
    - Sealing protection: IP65/NEMA4X from the front
    - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux
    - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10,Linux
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    CertificationFCC,CE,RoHS

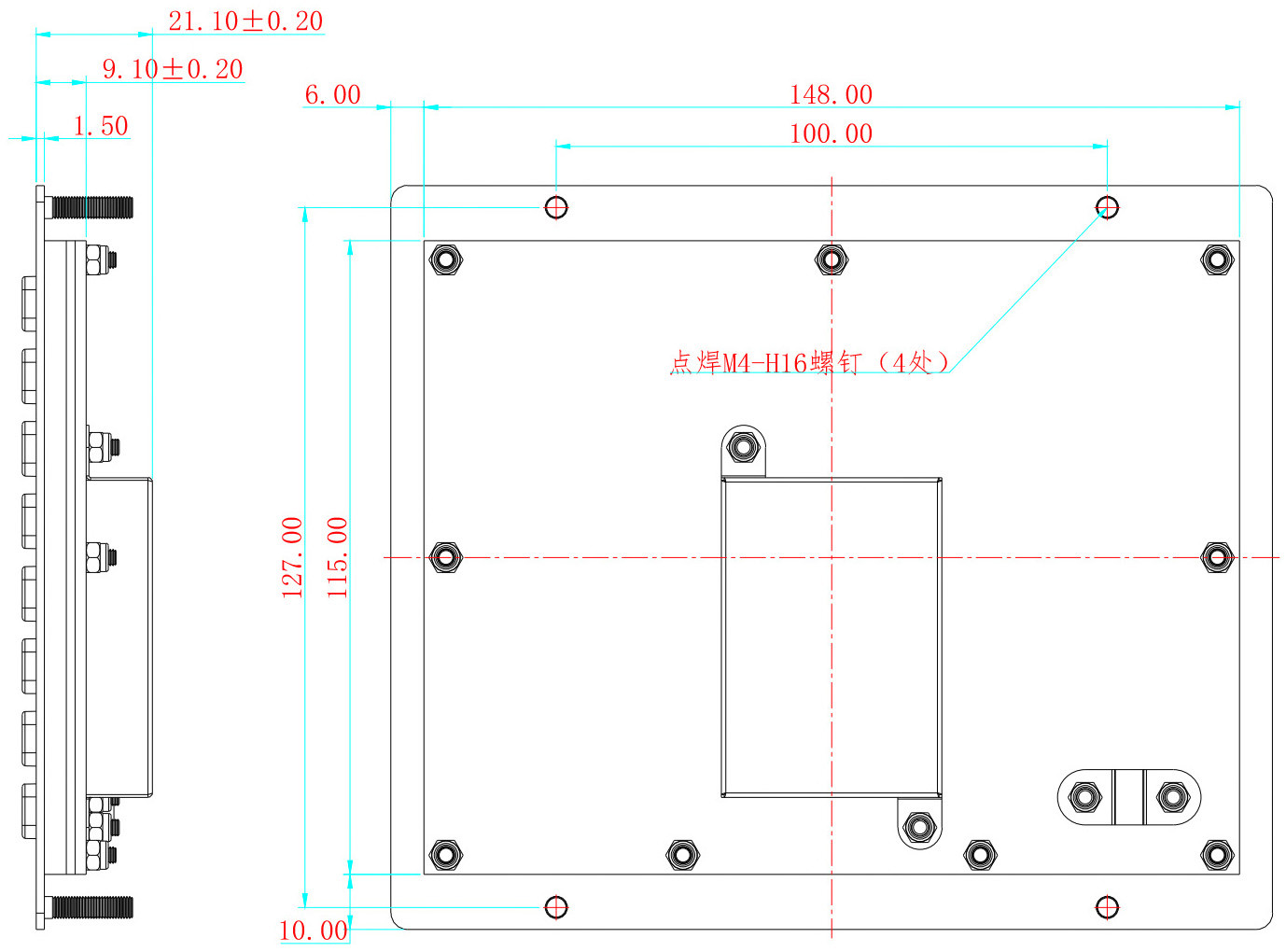

    Dimension

    - Front panel: 160 x 135mm(W x H)

    - Back panel: 148 x 115mm(W x H)

    Weight0.40 kgs
