    Led Backlight Waterproof Metal Keyboard Illuminated EMC 20mA

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKB-64A-TP-BL
    Certification : CE,FCC,ROHS
    Price : US$
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 3000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

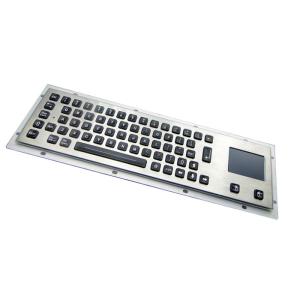

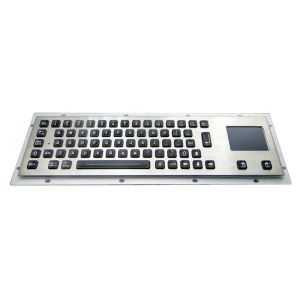

    Led Backlight Waterproof Metal Keyboard Illuminated EMC 20mA

    Industrial Waterproof Metal Keyboard With Illuminated Backlit and with Touchpad

    PN:MKB-64A-TP-BL


    Key Features:
    1) 65 LED individually-lit keys

    2) with integrated touchpad;
    3) Panel mount, installing from the rear side
    4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
    5) Specially designed to operate in harsh and low-lit environments

    6) Robust construction, high resistance against vandalism
    7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
    8) PS/2 or USB interface for option

    9) Customizable layout upon customer’s request


    ItemsSpecifications
    Key Features

    -65 LED individually-lit keys

    -with integrated touchpad;
    - Panel mount, installing from the rear side
    - Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
    - Specially designed to operate in harsh and low-lit environments

    - Robust construction, high resistance against vandalism
    - Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
    - PS/2 or USB interface for option

    -Customizable layout upon customer’s request

    Material

    - Front panel: Brushed stainless steel

    - Keys:High temperature-resistant polycarbonate
    - Back panel: Aluminum alloy

    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: 20mA
    - Interface: USB or PS2
    - EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1
    Environmental Characteristics- Operating temperature: -20º C to + 60º C
    - Storage temperature: - 40º C to + 80º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data- Actuation force:120±15g
    - Key travel: 2.0mm
    - Lifetime (cycles): Min 5, 000, 000 actuations
    - Sealing protection: IP65/NEMA4X from the front
    - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP
    - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    CertificationFCC,CE,RoHs
    DimensionFront panel: 400.0x124.0x22.2mm
    Weight1.80 kgs

    FAQ

    1. Q: How could I get samples?
    A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
    2. Q: How much the Courier freight will be for the samples?
    A: Courier freight depends on the quantity,weight and carton size and your area.
    3. Q: How can i get your price list?
    A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
    4. Q: Can you arrange the transportation for us?
    A: Yes,We can arrange transportation by sea or by air.
    5. Q: What's your usual payment term for orders?
    A: We accept terms of T/T /Westunion/Paypal/LC
    6. Q: what's the warranty of your products?
    A: one year
