    Customized Industrial Numeric Keypad Rugged Waterproof Panel Mount

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKP110-16BL
    Certification : CE,FCC,ROHS
    Price : US$40-80
    Payment Terms : T/T,Paypal, Western Union, L/C, D/A, D/P
    Supply Ability : 2000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Customized Industrial Numeric Keypad Rugged Waterproof Panel Mount

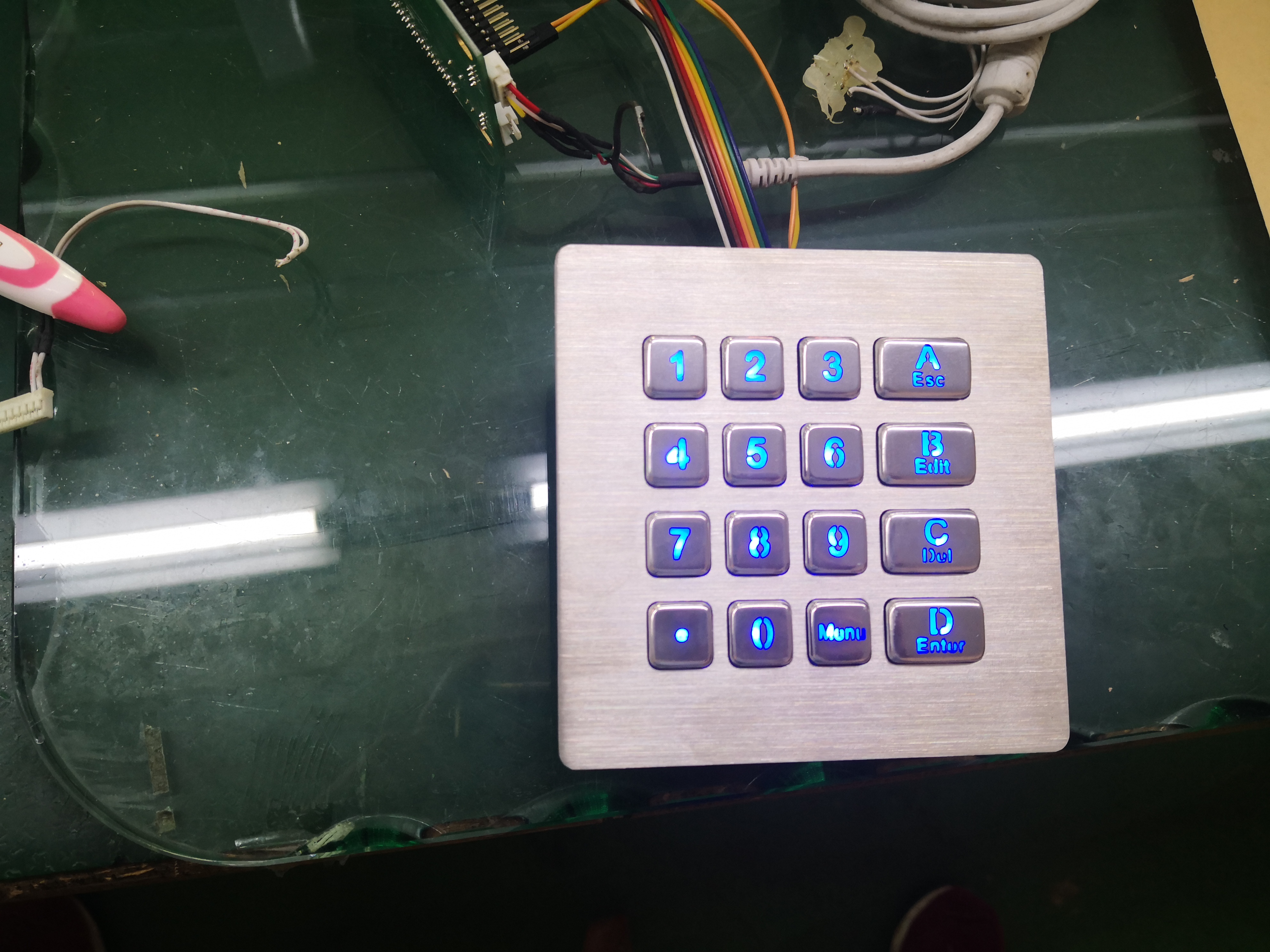

    Customized Industrial Numeric Keypad with 16 Backlited Keys Used for Low-lit Environment


    Part Number:MKP110-16BL


    Door access keypad with Keys and front plate made of 304 stainless steel


    ItemsSpecifications
    Product Description
    • Rugged stainless steel, waterproof, vandal-proof, panel-mount keypad with 16 backlit keys
    Application

    -All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk etc

    -Workstations or machines in factories

    -Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

    Key Features

    - 16 backlit keys makes it ideal for application in low-lit environment

    - Panelmount from the front
    - Built to operate in harsh environments

    - Made of stainless steel,high resistance against vandalism
    - Dust-proof and liquid-proof, meet IP65 requirement
    - PS/2 or USB interface for option
    - Customizable layout

    Material- Front panel & Keys: Brushed stainless steel
    - Back panel: Aluminum alloy
    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: 20 mA
    - Interface: USB or PS2
    - EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1
    - FCC: Part 15, class B
    - Safety: EN 60950, CE compliant
    Environmental Characteristics- Operating temperature: -20º C to + 60º C
    - Storage temperature: - 40º C to + 80º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data- Actuation force for key:120±15g
    - Key travel:2.00mm
    - Lifetime (cycles): Min 5, 000, 000 actuations
    - Sealing protection: IP65/NEMA4X from the front
    - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP
    - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    Certification
    • FCC,CE,RoHS
    Dimension
    • Front panel: 110.00 x 110.00mm
    Weight
    • 0.30 kgs


    Why us?

    1, ISO9001:2008 certification
    2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
    3, Reasonable price and fast response
    4, Over 10 years of experience in rugged input device and touchscreen kiosk
    5, OEM and ODM capability
    6, Flexibility in customization and size of order
    7, Trusted suppliers of many world-class famous brands in the industry
