Brand Name : | KINGLEADER |
Model Number : | SKB-106-BL |
Certification : | CE,FCC,ROHS,IP68 |
Price : | US$1-100 |
Payment Terms : | T/T,Paypal, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability : | 3000pcs/month |
Delivery Time : | 20days |

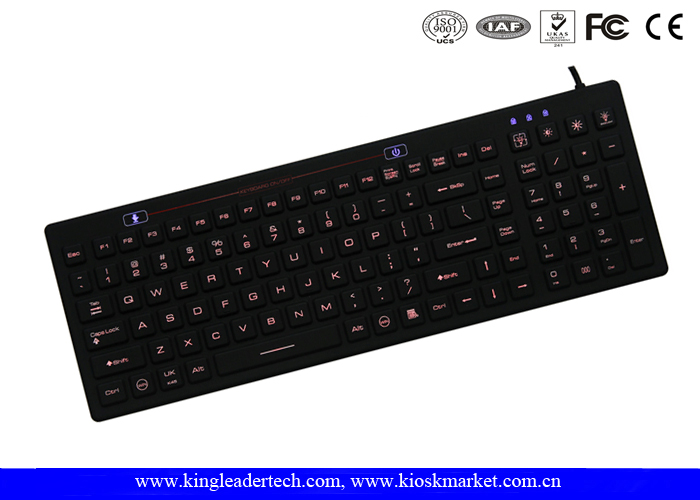

Hospital Medical Keyboard with ON / OFF Backlit and Optional Languages Layout
Part Number: SKB-106-BL
Items | Specifications |
Key Feature | - Main power and backlight ON/OFF switch, two level adjustable brightness of backlight - Interchangeable 3-color backlight
|
Material |
|
Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
Certification | FCC,CE,RoHs |
Dimension | -380.00(L) x 130.00(W) x 10.00(T) mm |
Weight | 0.65 kgs |
Why us?
1, ISO9001:2008 certification
2, Audited supplier by SGS, TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 10 years of experience in rugged input device and touch
screen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the
industry
Our Services
* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales
team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.
Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern
Asia; Western Europe; Central America; Northern Europe; Southern
Europe
![]() |
