Brand Name : | KINGLEADER |
Model Number : | SKB-FN109-M |
Certification : | CE,FCC,ROHS,IP68 |
Price : | US$30-60 |
Payment Terms : | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 3000pcs/month |
Delivery Time : | 20days |

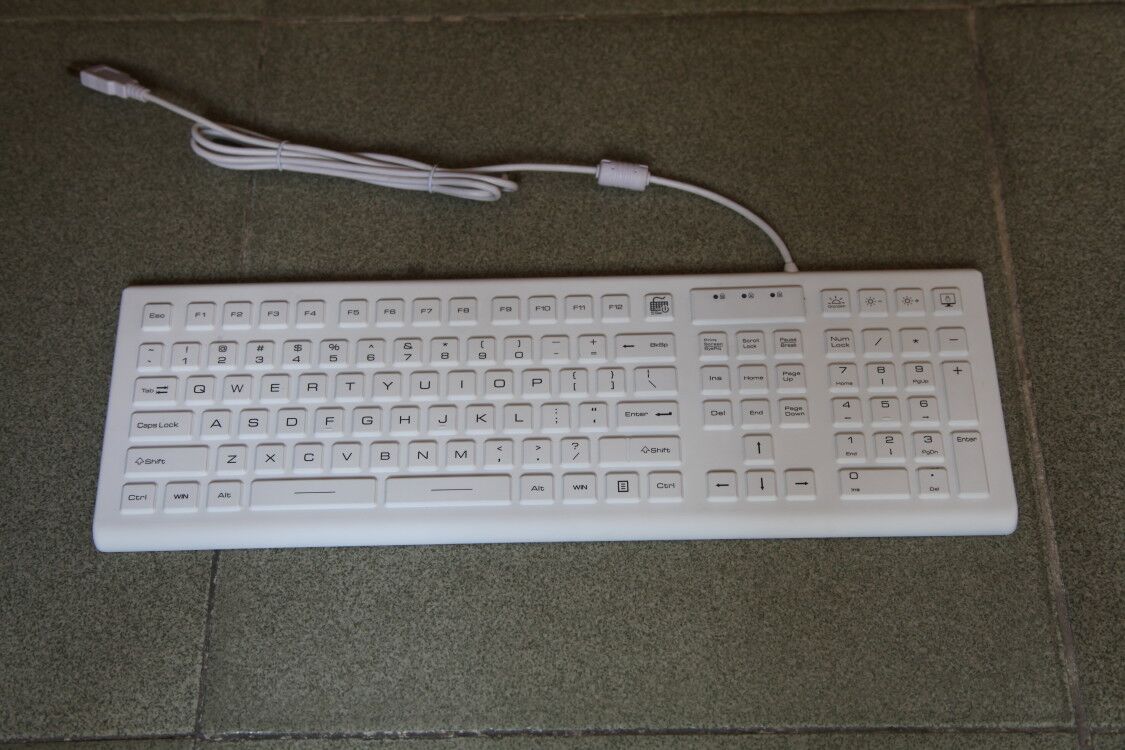

Waterproof Silicone Keyboard with Excellent Keys Tactile Feel and Optional Backlight
Part Number:SKB-FN109-M
Rugged,washable,silicone keyboard with or without backlit keys
Items | Specifications |
Key Feature | - 109 keys including 12 function keys and numeric keypad - To lock all the keys through pressing just one key - Adjustable brightness of backlight - Backlight can be chosen ON or OFF by pressing the “Backlight” key - All the keys can be locked and disabled for cleaning simply through pressing the “5 Sec ON/OFF” key for 5 seconds
|
Material |
|
Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 30º C to + 75º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
Mechanical Data | - Actuation force: 60-80g - Key travel: 2mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
Certification | FCC,CE,RoHs |
Dimension | -440.00(L) x 140.00(W) x 12.00(T) mm |
Weight | 0.68kgs |
How to order?
If you are interested in our products and want to place an order,
firstly contact us by email,or contact with us online and we will
send you our price list.
After that you can make a list of the products or just show the
pictures that you are interested in and send it to usso that we can
prepare the Proforma Invoice with freight cost and bank account for
your checking.
After you received the Proforma Invoice you can arrange payment
using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship
them out in 3-5 working days.
And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail
address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own
forwarder, tell us their contact details
![]() |
