Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

    Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers

    Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers
    • Buy cheap Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys from wholesalers

    Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : PKB-68-TB
    Certification : CE,FCC
    Price : US$30-50
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, T/T, Western Union, MoneyGram,Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

    Kingleader’s PKB-68-TB is a low-cost yet rugged panelmount plastic keyboard,embracing both panelmount capability and the excellent typing feel of office keyboards,which makes it possible to integrate the keyboard with other machines or workstations.


    Moreover an integral optical trackball eliminates the hassle of an additional wired mouse.


    Due to its unique design and build,it is widely used in industrial workplaces such as factory workshop,weighing station,warehousing,logistics,material handling and so on.



    Items


    Specifications
    Key Features

    - 68 full-travel keys including 12 numeric/function keys

    - Panelmount from the rear side

    - Integrated with optical trackball(14mm dia)

    - Silk-printing key legend

    - Cable length:1.8m

    - Interface:USB or PS/2

    - Color:black

    - Layout:US,UK,DE,FR,ESP,JP or custom

    Material- PC/ABS for the case and keys
    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: <=30 mA
    - Interface: USB or PS2
    - EMC Emission:EN55022(B)
    Environmental Characteristics- Operating temperature:0º C to + 55º C
    - Storage temperature: - 10º C to +60º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data

    - Actuation force: 70 ±10g
    - Key travel: 2.5mm ±0.5mm
    - Lifetime (cycles) of keys: Min 10 millions actuations

    - Diameter of trackball:14mm
    - Sealing protection: IP65/NEMA4X from the front
    - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP
    - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11
    IP Rating-IP55
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    Dimension

    -330.00 x 100.00(L x W)(Front plate)

    -354.00 x 130.00(L x W)(Back plate)

    -Thickness:28.00mm(to the tallest point)

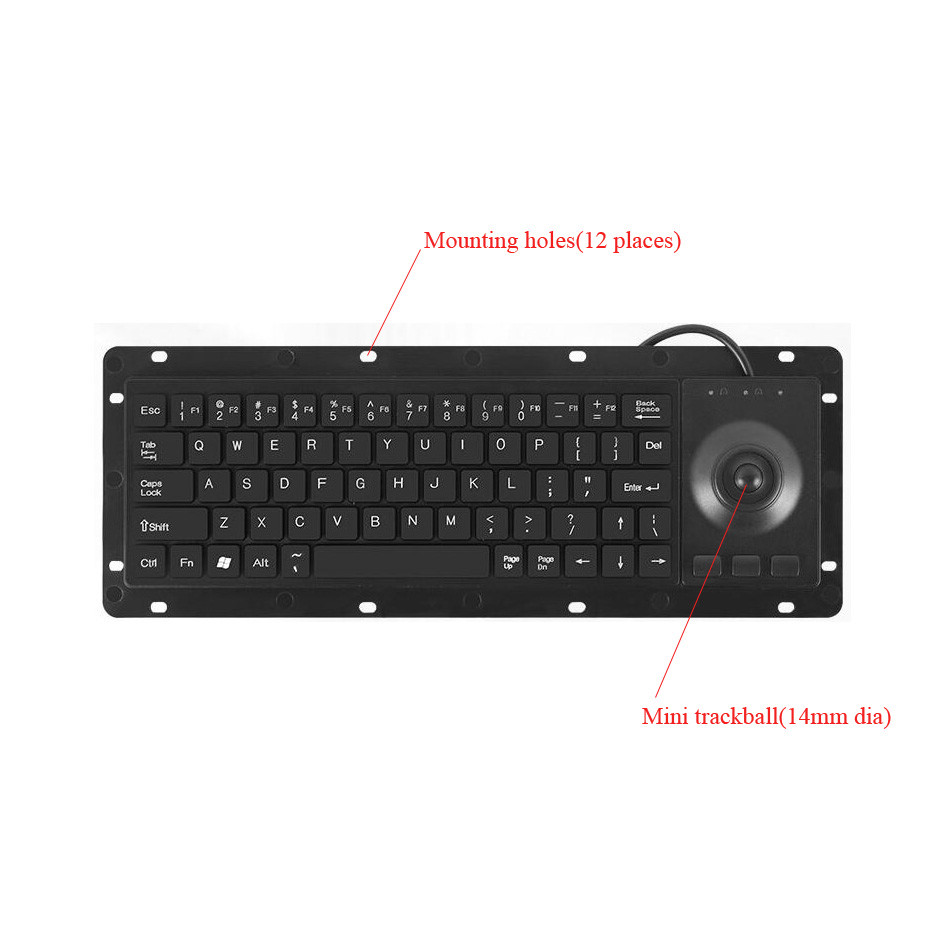

    see below drawing

    Weight0.45 kgs

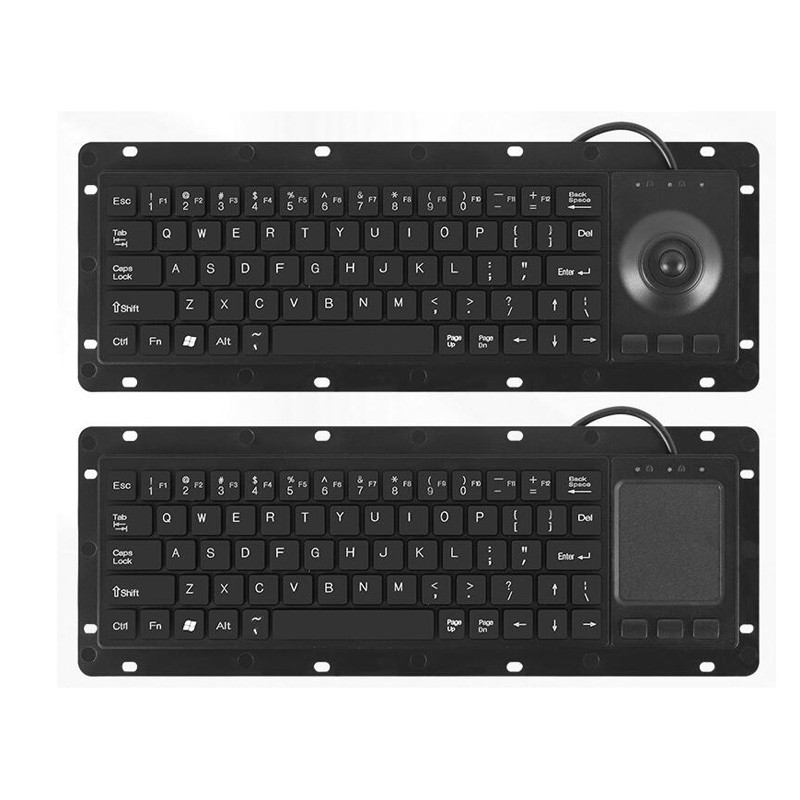

    Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 KeysLow-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

    Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys


    Company Information:


    KINGLEADER is an ISO9001:2015 and ISO13485 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.


    Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.


    Why us?


    1,ISO9001:2015 and ISO13485 certification


    2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS


    3,Reasonable price and fast response


    4,Over 20 years of experience in rugged input device and touchscreen kiosk


    5,OEM and ODM capability


    6,Flexibility in customization and size of order


    7,Trusted suppliers of many world-class famous brands in the industry
