    IP65 Panelmount Stainless Steel Metal Silicone Industrial Medical Keyboard With Touchpad

    Ask Lasest Price
    Brand Name : Kingleader or custom
    Model Number : MKB-FN107B-TP
    Certification : CE,FCC,RoHS
    Price : US$175/pc Exworks
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    IP65 Panelmount Stainless Steel Metal Silicone Industrial Medical Keyboard With Touchpad

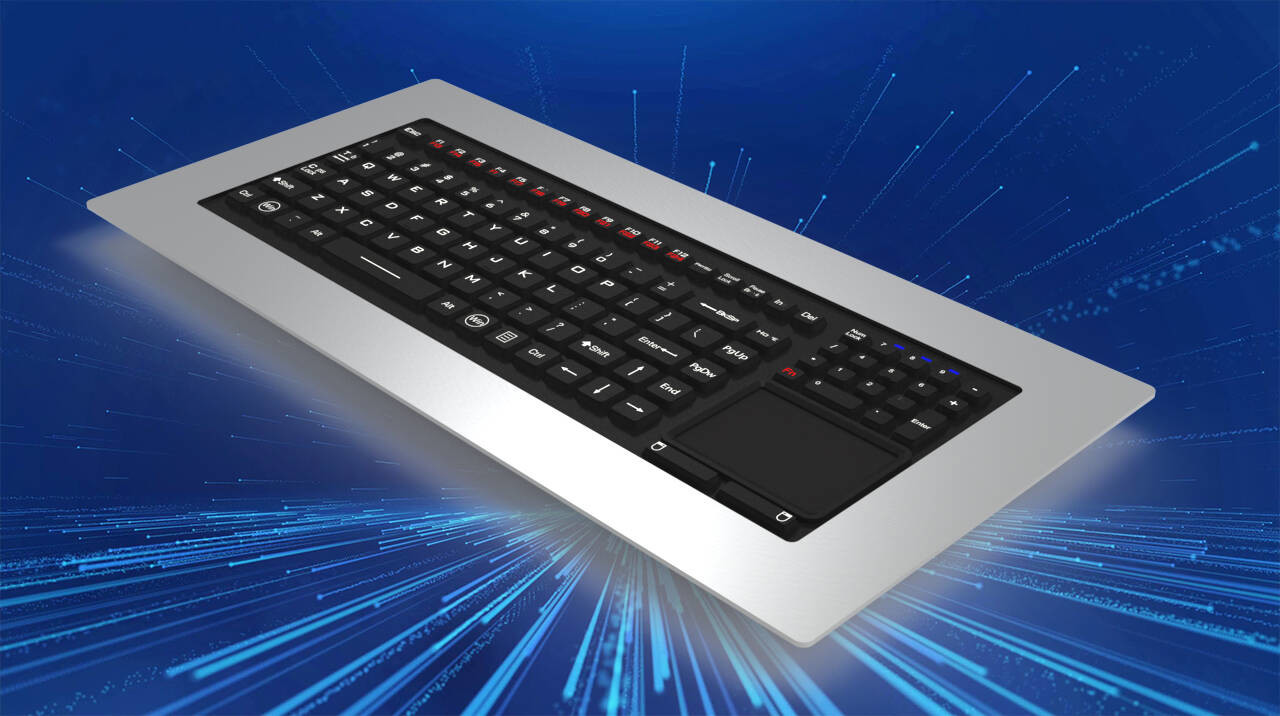

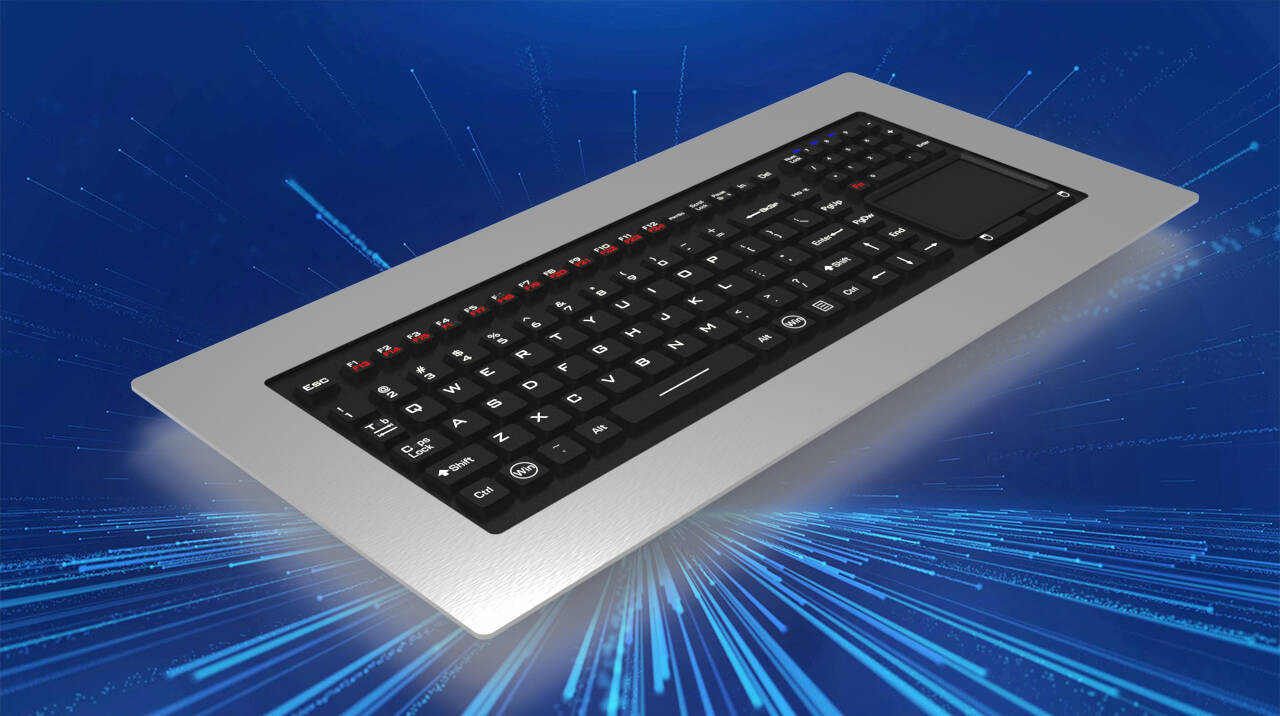

    KINGLEADER’s SKB-FN107B-TP,is designed to provide a full-featured keyboard and pointing device in a rugged form factor that can be panel-mounted in any HMI panel.


    It consists of a completely-sealed IP68-rated silicone keyboard and a stainless steel bezel,the silicone keyboard has 107 keys(including 12 function &multimedia keys,numeric keypad) and integrated touchpad.


    Due to its unique design and build,it is rugged,virustatic,washable and can be disinfected with common hospital-approved disinfectant, it is an ideal input terminal used in industrial or medical environments.



    Items


    Specifications
    Key Feature

    - Panelmount

    - 107 keys including 12 function&multimedia keys and numeric keys

    - Built-in touchpad

    - Addition of antimicrobials into silicone to prevent reproduction of harmful bacterials like Coronavirus or COVID-19 virus

    - EMC Certified for electrical medical equipment

    - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists

    - Colors of key membrane:Black or white or custom

    - Layout:US,UK,DE,FR or custom

    Material

    - Front panel:SUS403 stainless steel

    - Bottom case:Electrolytic plate

    - Mounting brackets:Aluminum alloy

    - Membrane of keys:Industrial and medical grade silicone

    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: <=100 mA
    - Interface: USB or PS2
    - EMC Emission:EN55022(B)
    Environmental Characteristics- Operating temperature: -20º C to + 60º C
    - Storage temperature: - 40º C to + 80º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data- Actuation force: 90 ±15g
    - Key travel: 1.50mm ±0.5mm
    - Lifetime (cycles): Min 10, 000, 000 actuations
    - Sealing protection: IP68
    - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux
    -USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    Certification

    -CE,FCC,RoHS,IP68,Anti-microbial testing

    -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013

    Dimension-406.00(L) x 195.00(W) x 16.00(T) mm,see the drawing shown below
    Weight2.10 kgs
